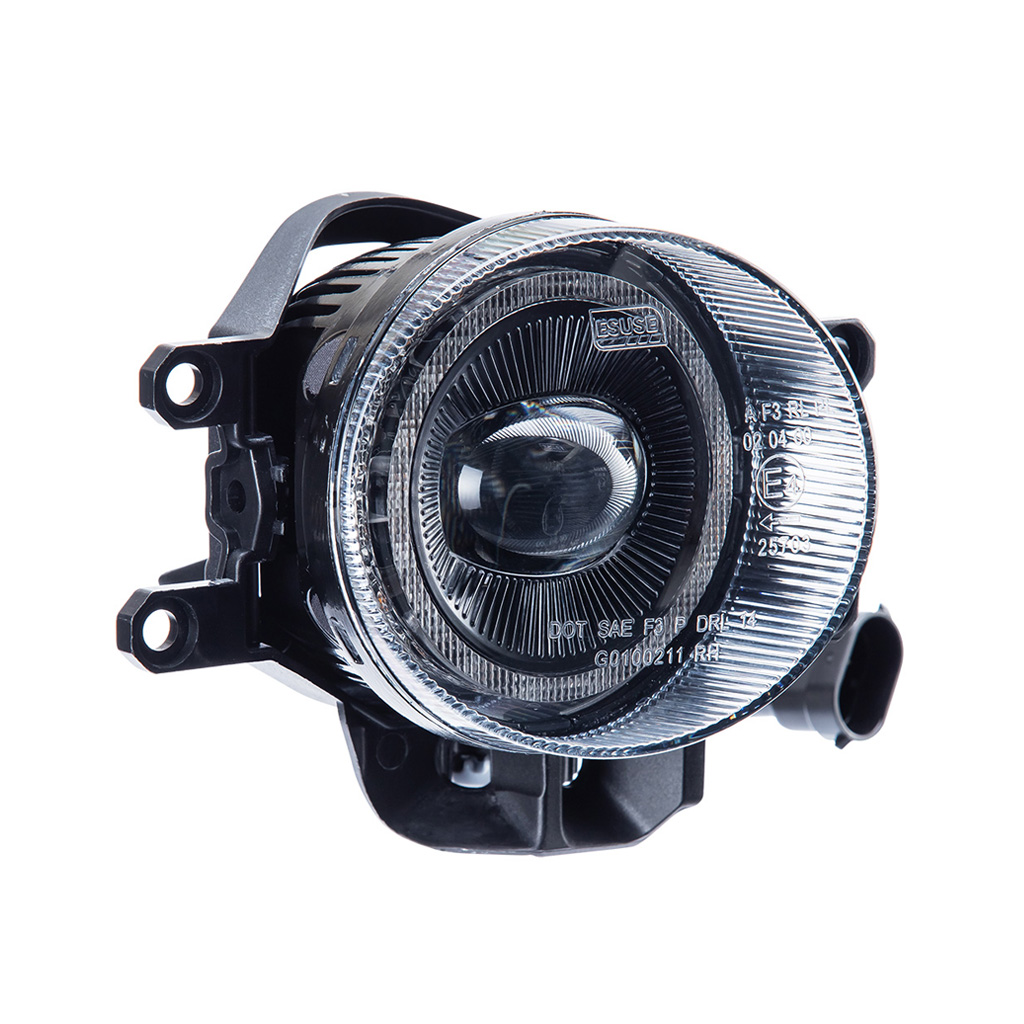

4 in 1 LED Combination Light
LD-UV004
- Integrated fog light, DRL, position light and direction indicator, four functions in one compact, high quality unit.
- Aluminum base and hard coated lens for excellent heat dissipation and UV resistance.
- High impact material & waterproof design.
- Comply with ECE、SAE、FMVSS regulation.
| Product Number | LD-UV004 |
|---|---|
| Input Voltage | 10~16VDC |
| Current-Fog Light | 0.55A@13.5VDC |
| Current-DRL(Full) | 1.05A@13.5VDC |
| Current-DRL(Reduced) | 0.99A@13.5VDC |
| Current-Direction Indicator | 1.03A@13.5VDC |
| Power-Fog Light | 8W |
| Power-DRL(Full) | 15W |
| Power-DRL(Reduced) | 4W |
| Power-Direction Indicator | 14W |
| Color Temp. | 5700K White |
| Operating Temp. | -30°C ~ +70°C |
| LENS Material | PMMA & PC |
| Housing Material | Aluminum |
| Approval | ECE, SAE, FMVSS |
- Wide beam optic with penetrable light source, enhances safety in serious weather conditions and avoids dazzling affect.
- Durable and less energy consuming with long service life.
- Universal fixing bracket for easy installation.
- Excellent heat dissipation design and hard-coated lens for UV resistance.
- Comply with ECE, SAE, FMVSS regulation.
- Car fog lamp replacement
- 4x4 vehicle, Jeeps, Off-road applications
- Customized car light modification
- Truck or Buses
