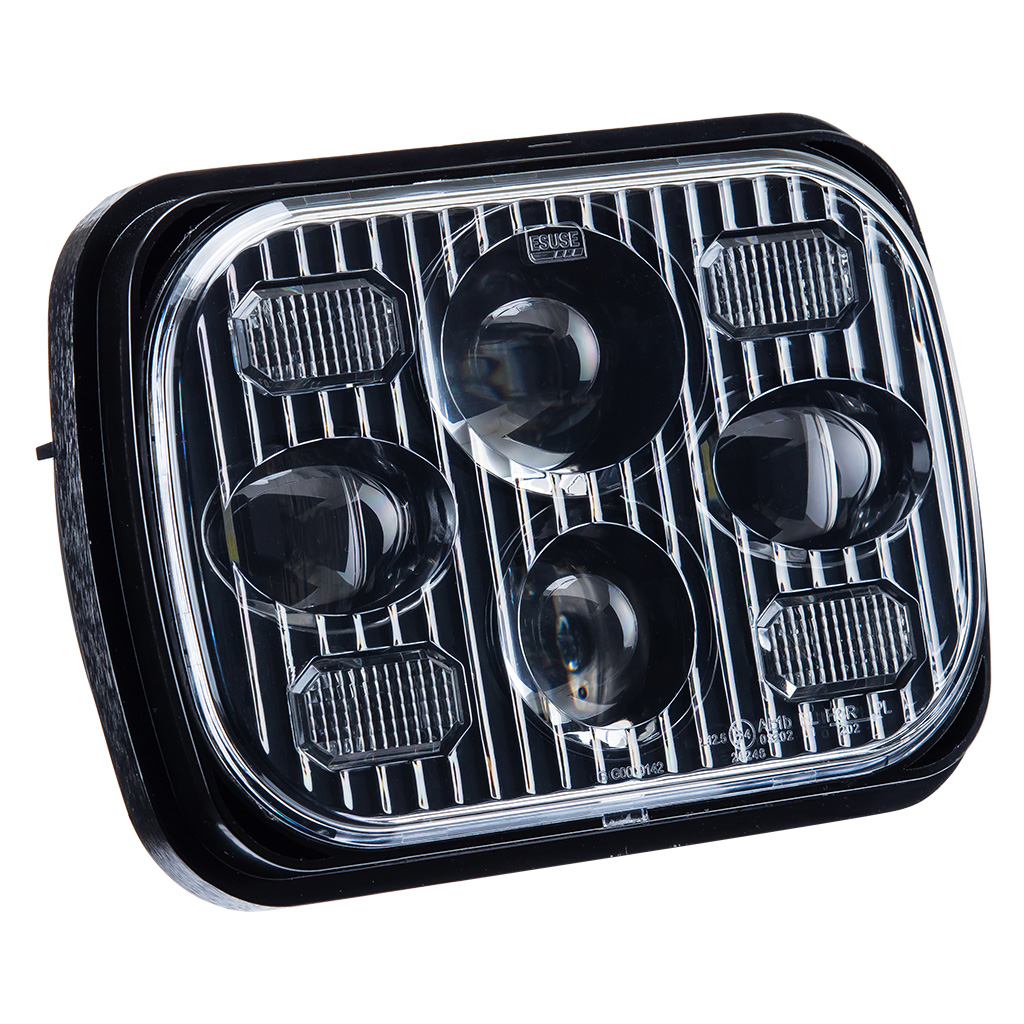

5X7 Inches Multi-Functional, Rectangular Headlight
HL-UV010
- 5x7 inches rectangular, multi-functional headlight with integrated High Beam, Low Beam, DRL, and Direction Indicator, four functions in one compact design.
- Aluminum base with hard coated lens for excellent heat dissipation and UV resistance.
- High impact material & waterproof design.
- Comply with ECE & SAE regulation.
Product Number | HL-UV010 |
---|---|
Input Voltage | 10~16VDC |
Current-High Beam | 2.5A@13.5VDC |
Current-Low Beam | 1.4A@13.5VDC |
Current- DRL(Full) | 0.5A@13.5VDC |
Current- DRL(Reduced) | 0.07A@13.5VDC |
Current -Direction Indicator | 0.7A@13.5VDC |
Power -High Beam | 33.3W |
Power -Low Beam | 19W |
Power-DRL (Full) | 6.7W |
Power- DRL(Reduced) | 0.9W |
Power-Directional Indicator | 9.5W |
Color Temp. | 5700K White |
Operating Temp. | -30°C ~ +70°C |
Lens Material | PC |
Base Material | Aluminum |
Approval | ECE & SAE |
- Durable and less energy consuming with a long service life.
- High Beam: Wide and long beam with center-weighted light distribution, enhance driver’s sight and detect obstacles easier.
- Low Beam: Medium length and width with a sharp and clear asymmetric cut-off line.
- Aluminum heat sink for excellent heat dissipation and hard-coated lens for UV resistance.
- Comply with ECE & SAE regulation.
- Headlamp replacement
- 4x4 vehicle, Jeeps, Off-road applications
- Customized car light modification
- Trucks or Buses
- Motorcycles
- Any special purpose of transportation application

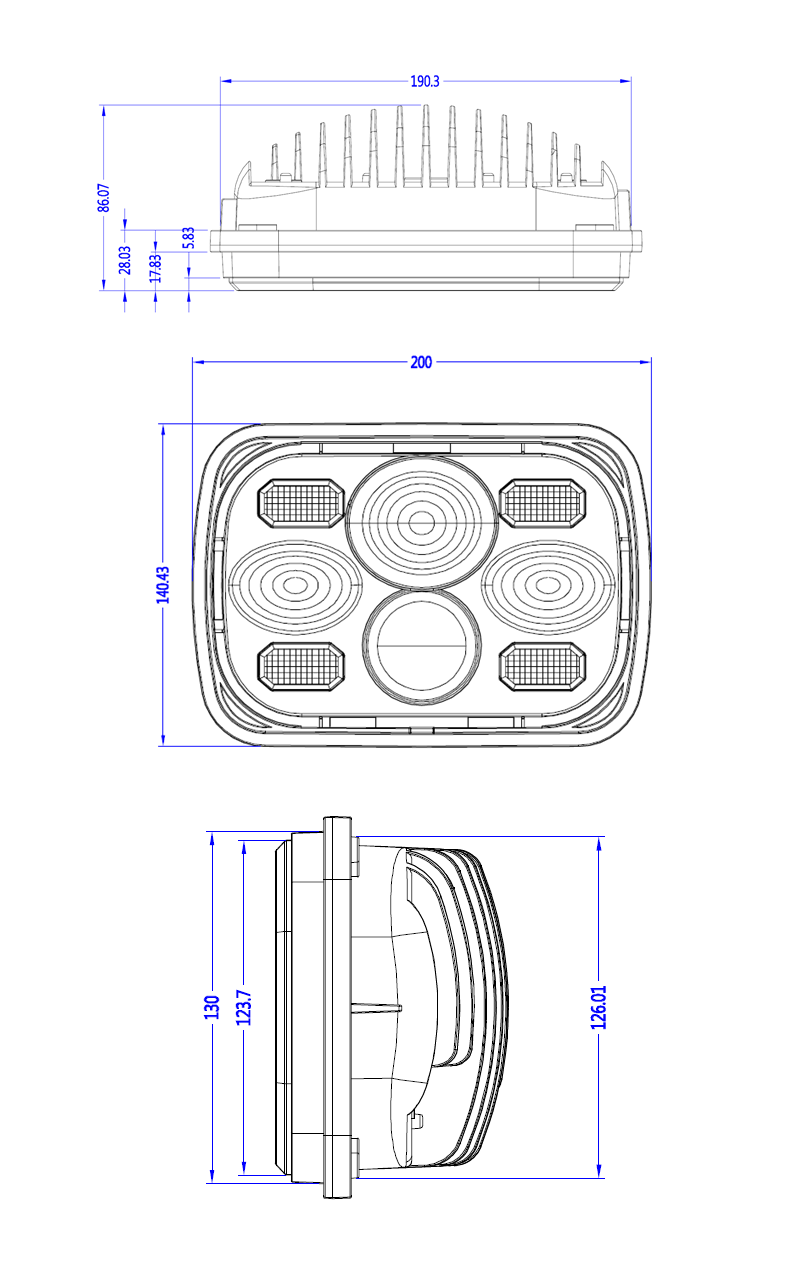

![](../upload/product/prod-2012100258.png)
