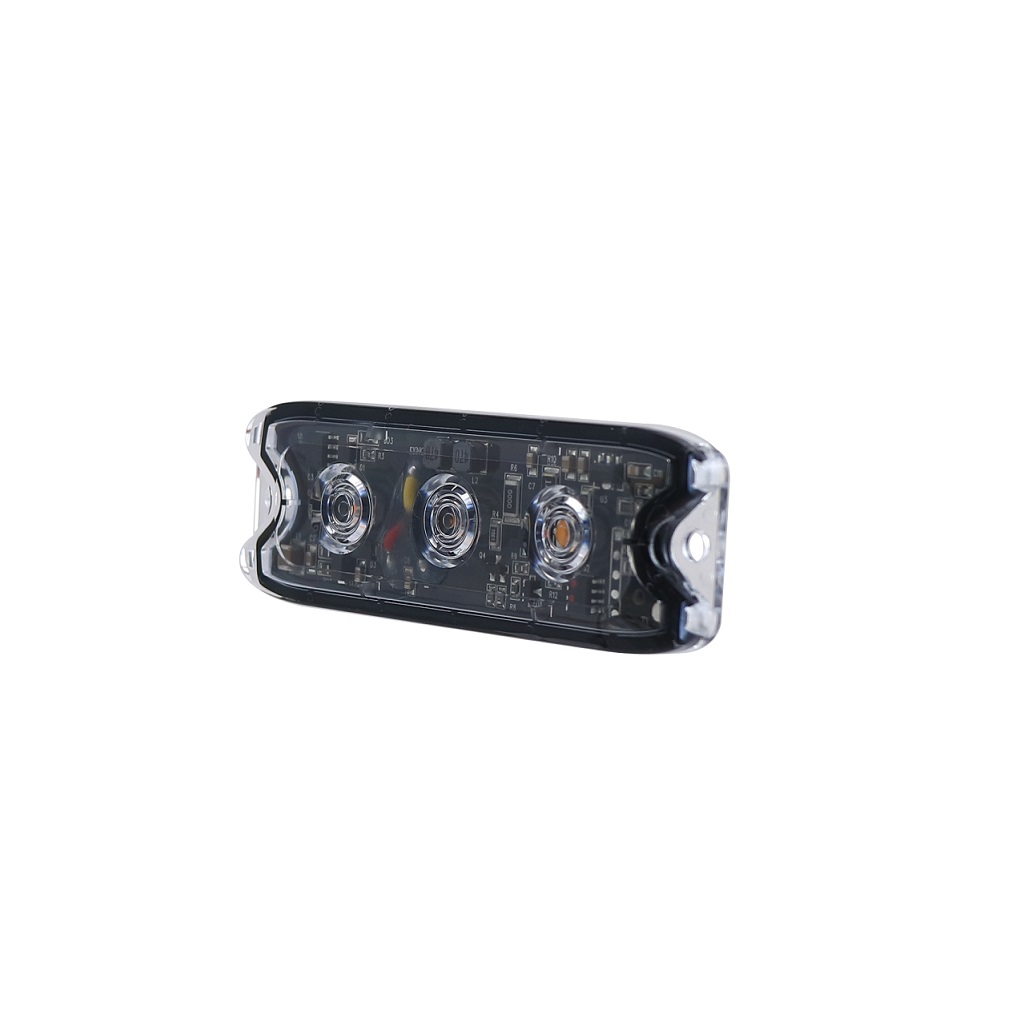

TP3 - Thinpad 3 LED Lighthead
LH01

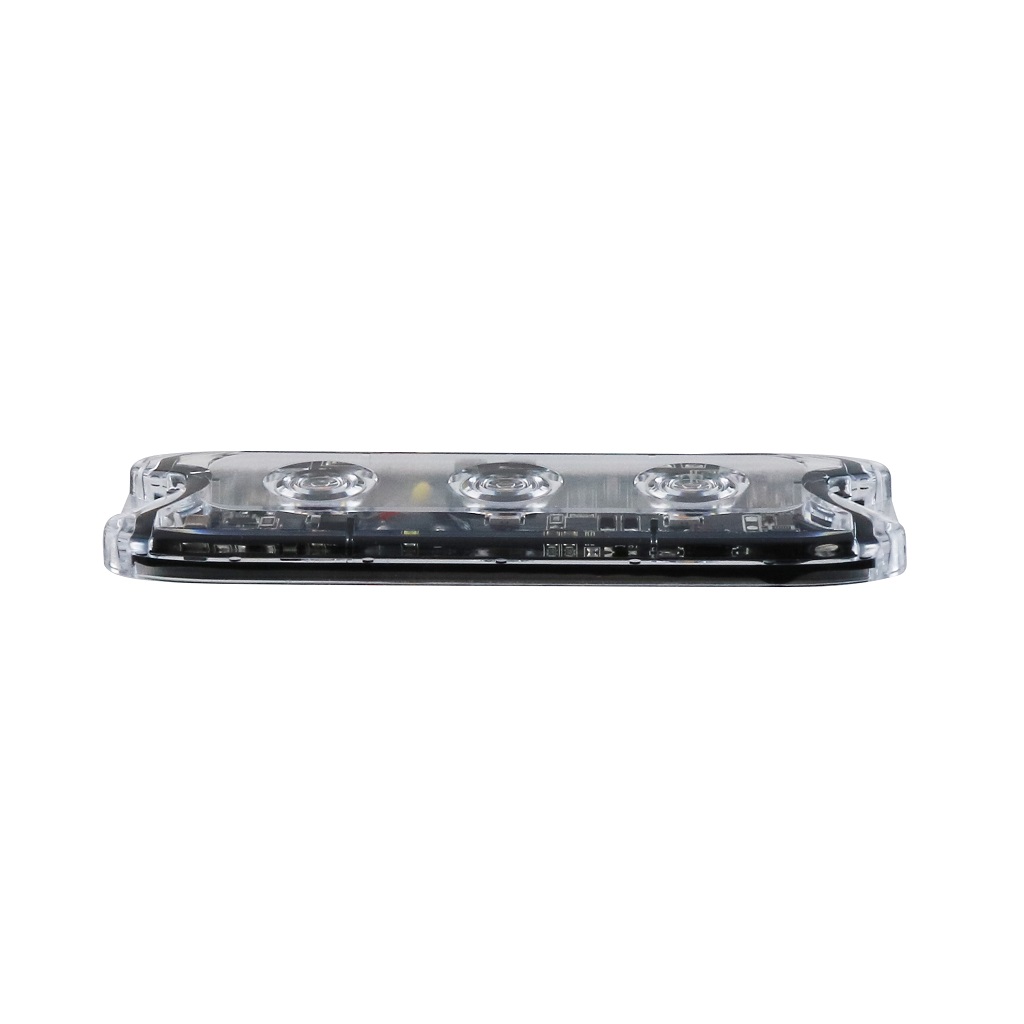

- 7mm, super low profile for discreet mounting.
- Choices of bolt mount and adhesive mount in one package.
- Multi-Voltage input 12~24VDC.
- Built-in 14 selectable flash patterns.
- Meets SAE J595 Class1, ECE R65 XA1/XB1, ECE R10.
Model | TP3 ( ThinPad 3 LED ) |
---|---|
Product Number | LH01 |
LED | High-power LED x 3pcs |
Warning Patterns | 14 Flash Patterns |
Operating Voltage | 12~24VDC |
Avg. Current | 0.32A @12.8VDC / 0.17A @24VDC (varies with flash pattern) |
Avg. Power | 4.1 Watts (varies with flash pattern) |
Max. Current | 0.64A @12.8VDC / 0.34A @24VDC |
Max. Power | 8.2 Watts |

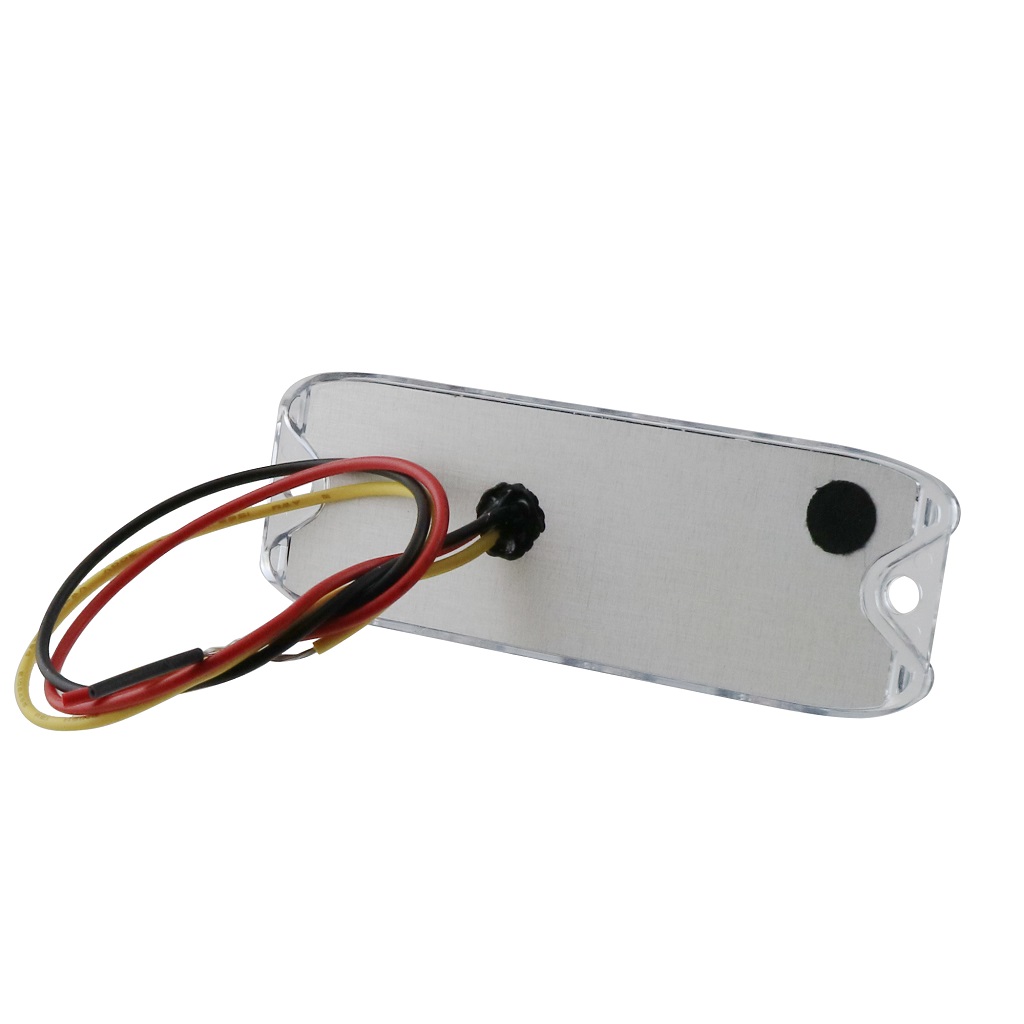

Wire-Red | +Vcc, 20cm (22AWG) |
Wire-Black | -GND, 20cm (22AWG) |
Wire-Yellow | +Vcc for “ID & Flash pattern” selection, “Starter” set up or unlock, 20cm (22AWG) |
Wire-Blue | Connect all blue wires together among warning lights , 20cm (22AWG) |
Fuse Recommended | 1A |
Multi-Unit Synchronization | Up to 16 units |
Available Color | RED, BLUE, AMBER, WHITE |
IP Level | IP67 |
Approval | SAE J595 Class 1,CAL T13, ECE R65 XA1/XB1, ECE R10 |
- 7mm, Super low profile for discreet mounting.
- Multi-Voltage input 12~24VDC.
- Built-in 14 selectable flash patterns.
- Non-volatile memory recalls last flash pattern used at power up.
- Synchronization for multiple units that can flash simultaneously or alternately.
- Reverse polarity protection.
- Weatherproof and vibration resistant design.
- Warning lamp replacement
- 4x4 vehicle, Jeeps, Off-road applications
- Emergency Service Vehicle: Fire trucks, ambulance, Police cars
- Trucks or Buses
- Motorcycles
- Any special warning purpose application

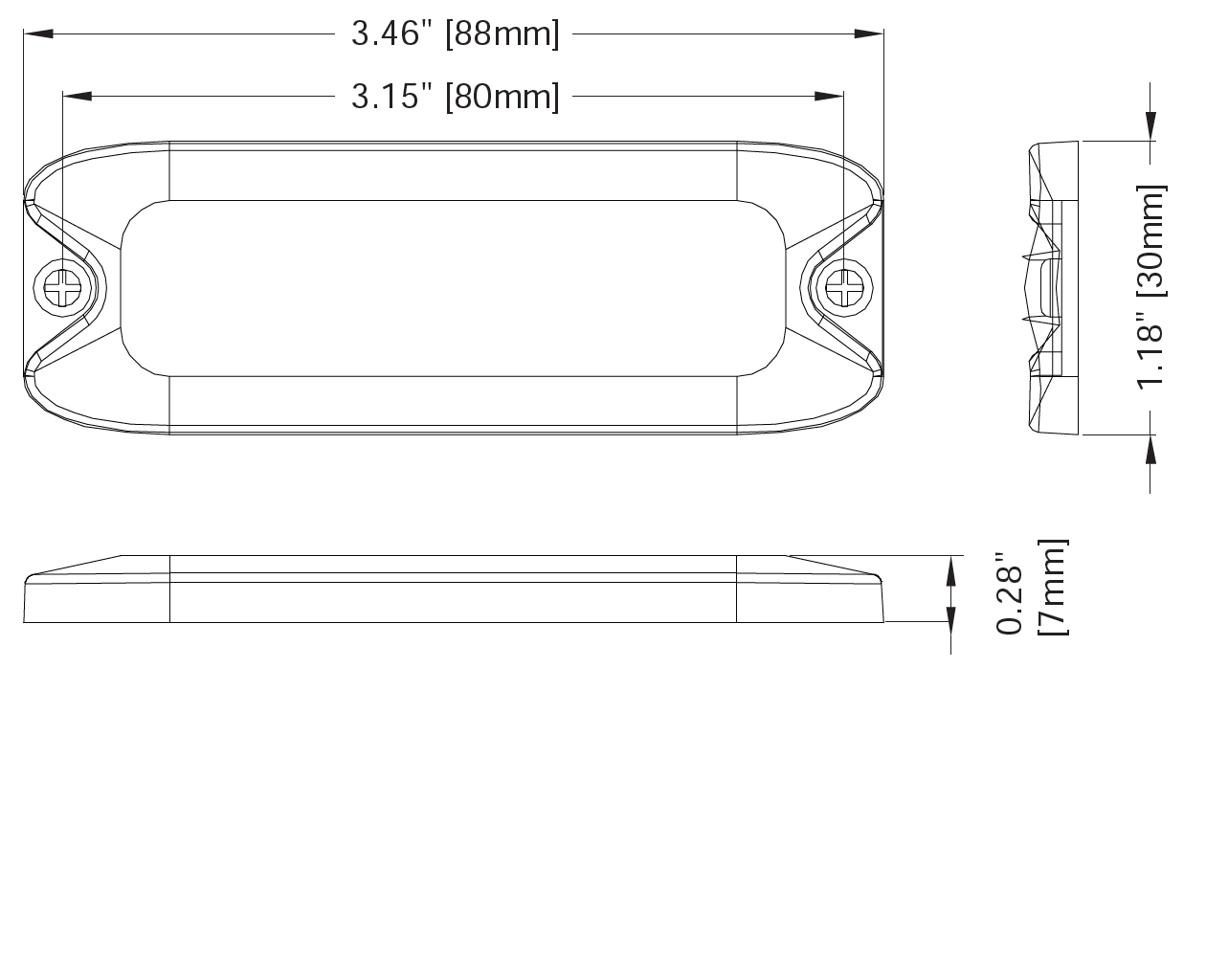

![](../upload/product/prod-2009170216.png)
