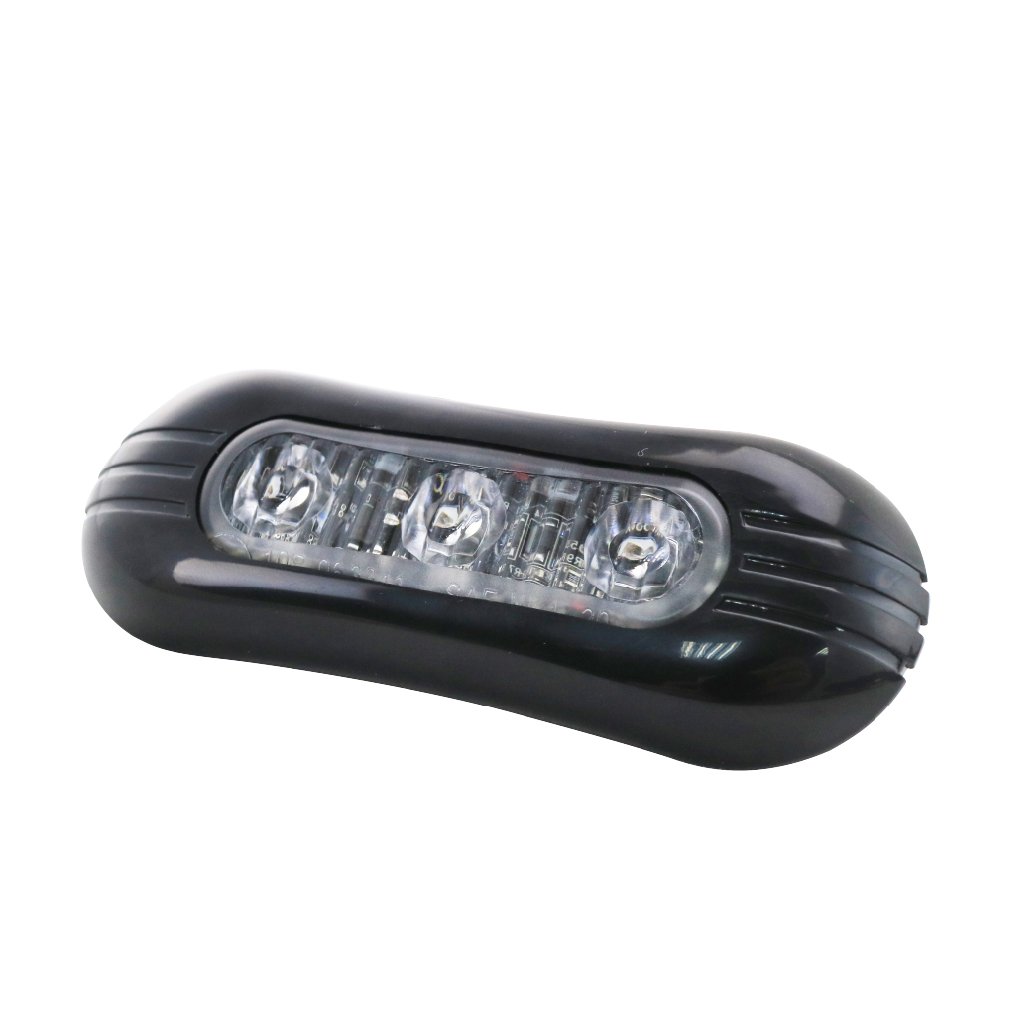

SL3- Streamline 3LED Warning Lighthead
LH04
- Aesthetic streamline design with decorative flange.

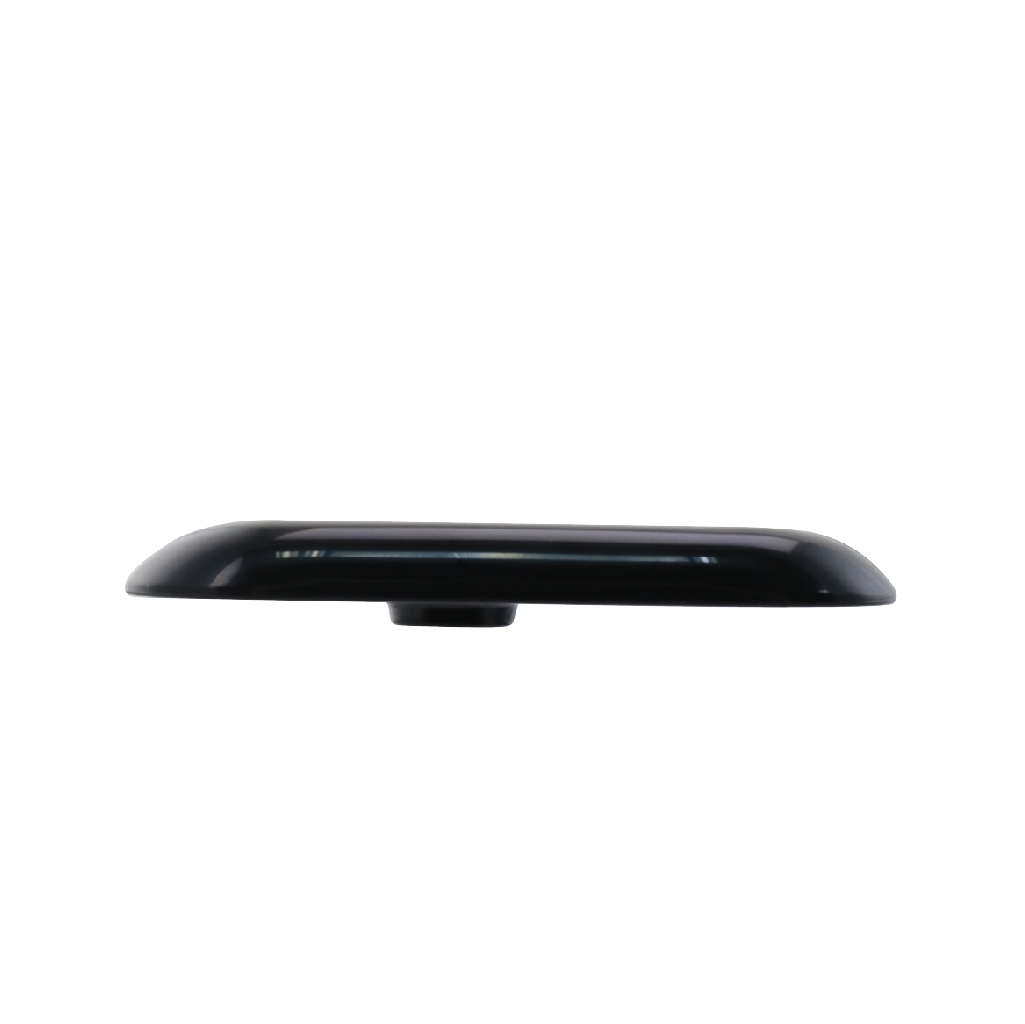

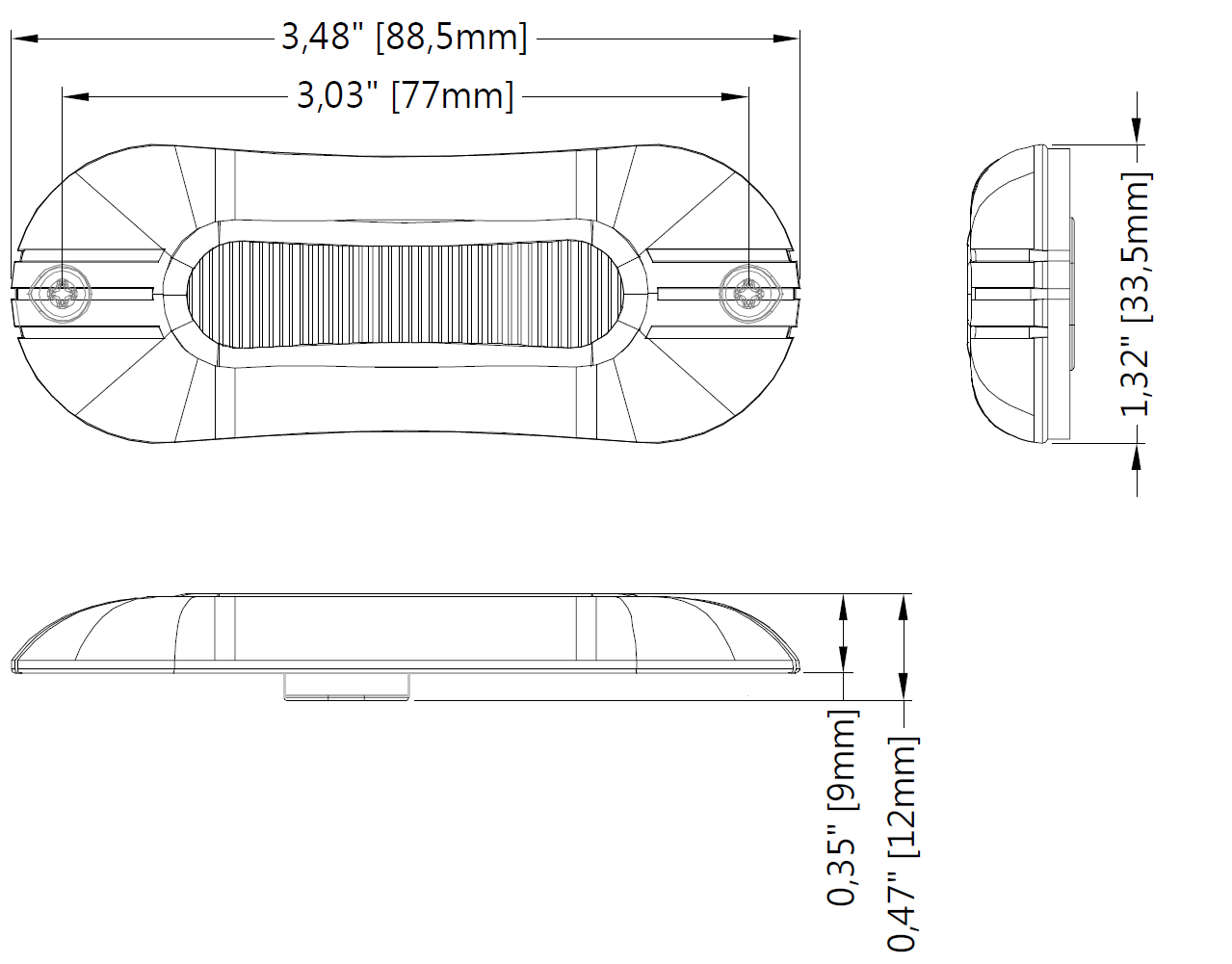

- 9mm, super low profile for discreet mounting.
- Multi-Voltage input 12~24VDC.
- Built-in 14 selectable flash patterns.
- Meets SAE J595 Class1, CAL T13, ECE R65 XA1/XB1, ECE R10.
| Model | SL3 ( Streamline 3 LED ) |
|---|---|
| Product Number | LH04 |
| LED | High-power LED x 3pcs |
| Warning Patterns | 14 Flash Patterns |
| Operating Voltage | 12~24VDC |
| Avg. Current | 0.32A @12.8VDC / 0.17A @24VDC (varies with flash pattern) |
| Avg. Power | 4.1 Watts (varies with flash pattern) |
| Max. Current | 0.64A @12.8VDC / 0.34A @24VDC |
| Max. Power | 8.2 Watts |
| Wire-Red | +Vcc, 20cm (22AWG) |
| Wire-Black | -GND, 20cm (22AWG) |
| Wire-Yellow | +Vcc for “ID & Flash pattern” selection, “Starter” set up or unlock, 20cm (22AWG) |
| Wire-Blue | Connect all blue wires together among warning lights , 20cm (22AWG) |
| Fuse Recommended | 1A |
| Multi-Unit Synchronization | Up to 16 units |
| Available Color | RED, BLUE, AMBER, WHITE |
| IP Level | IP67 |
| Approval | SAE J595 Class 1,CAL T13, ECE R65 XA1/XB1, ECE R10 |
- 9mm, Super low profile for discreet mounting.
- Multi-Voltage input 12~24VDC.
- Built-in 14 selectable flash patterns.
- Non-volatile memory recalls last flash pattern used at power up.
- Synchronization for multiple units that can flash simultaneously or alternately.
- Reverse polarity protection.
- Weatherproof and vibration resistant design.
- Warning lamp replacement
- 4x4 vehicle, Jeeps, Off-road applications
- Emergency Service Vehicle: Fire trucks, ambulance, Police cars
- Trucks or Buses
- Motorcycles
- Any special warning purpose application
