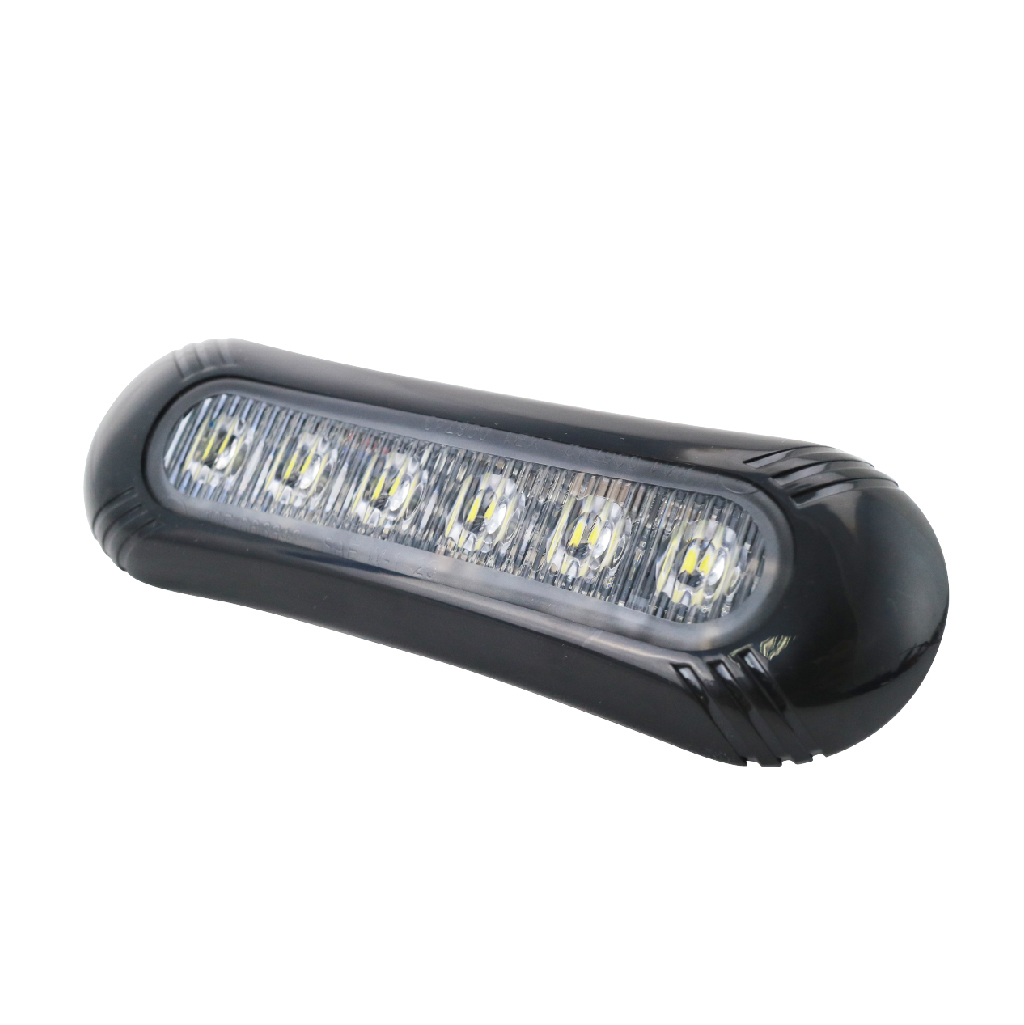

SL6- Streamline 6LED Warning Lighthead
LH05
- Aesthetic streamline design with decorative flange.

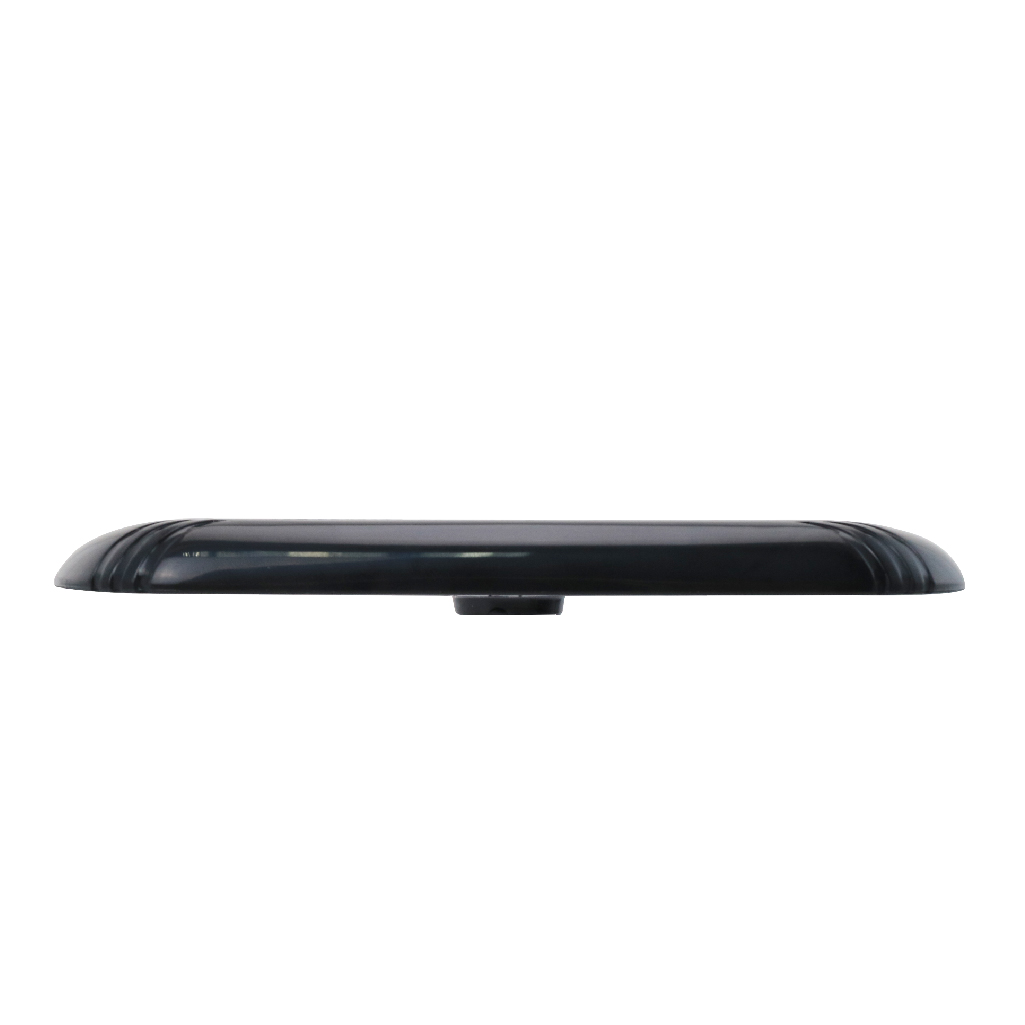

- 9mm, super low profile for discreet mounting.
- Multi-Voltage input 12~24VDC.
- Built-in 19 selectable flash patterns.
- Meets SAE J595 Class1, CAL T13, ECE R65 XA1/XB1, ECE R65 XA2/XB2,ECE R10.
Model | SL6 ( Streamline 6 LED ) |
---|---|
Product Number | LH05 |
LED | High-power LED x 6pcs |
Warning Patterns | 19 Flash Patterns |
Operating Voltage | 12~24VDC |
Avg. Current | 0.48A @12.8VDC / 0.26A @24VDC (varies with flash pattern) |
Avg. Power | 6.2 Watts (varies with flash pattern) |
Max. Current | 0.96A @12.8VDC / 0.51A @24VDC |
Max. Power | 12.3 Watts |
Wire-Red | +Vcc, 20cm (22AWG) |
Wire-Black | -GND, 20cm (22AWG) |
Wire-Yellow | +Vcc for “ID & Flash pattern” selection, “Starter” set up or unlock, 20cm (22AWG) |
Wire-Blue | Connect all blue wires together among warning lights , 20cm (22AWG) |
Fuse Recommended | 2A |
Multi-Unit Synchronization | Up to 16 units |

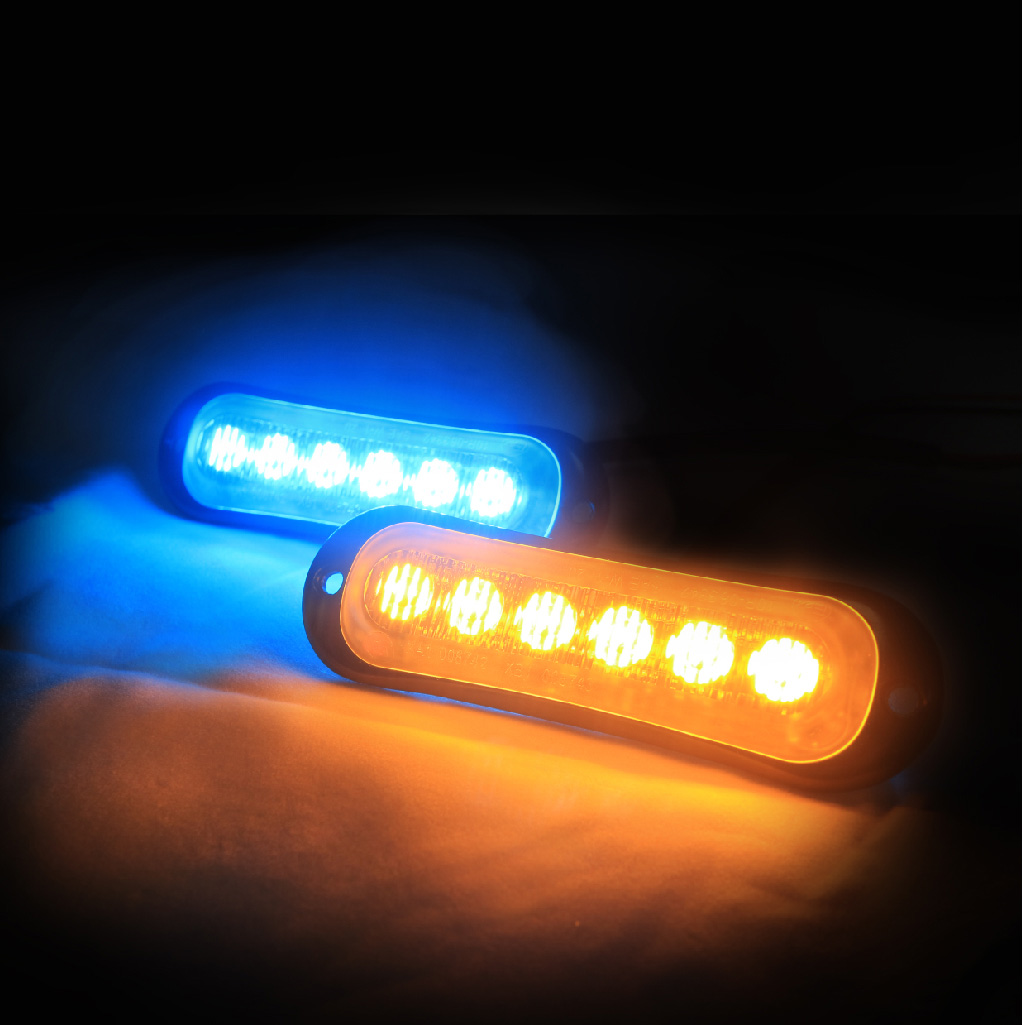

Available Color | RED, BLUE, AMBER, WHITE and Split Color |
IP Level | IP67 |
Approval | SAE J595 Class 1,CAL T13, ECE R65 XA1/XB1, ECE R65 XA2/XB2, ECE R10 |
- 9mm, Super low profile for discreet mounting.
- Multi-Voltage input 12~24VDC.
- Built-in 19 selectable flash patterns.
- Non-volatile memory recalls last flash pattern used at power up.
- Synchronization for multiple units that can flash simultaneously or alternately.
- Reverse polarity protection.
- Weatherproof and vibration resistant design.
- Warning lamp replacement
- 4x4 vehicle, Jeeps, Off-road applications
- Emergency Service Vehicle: Fire trucks, ambulance, Police cars
- Trucks or Buses
- Motorcycles
- Any special warning purpose application

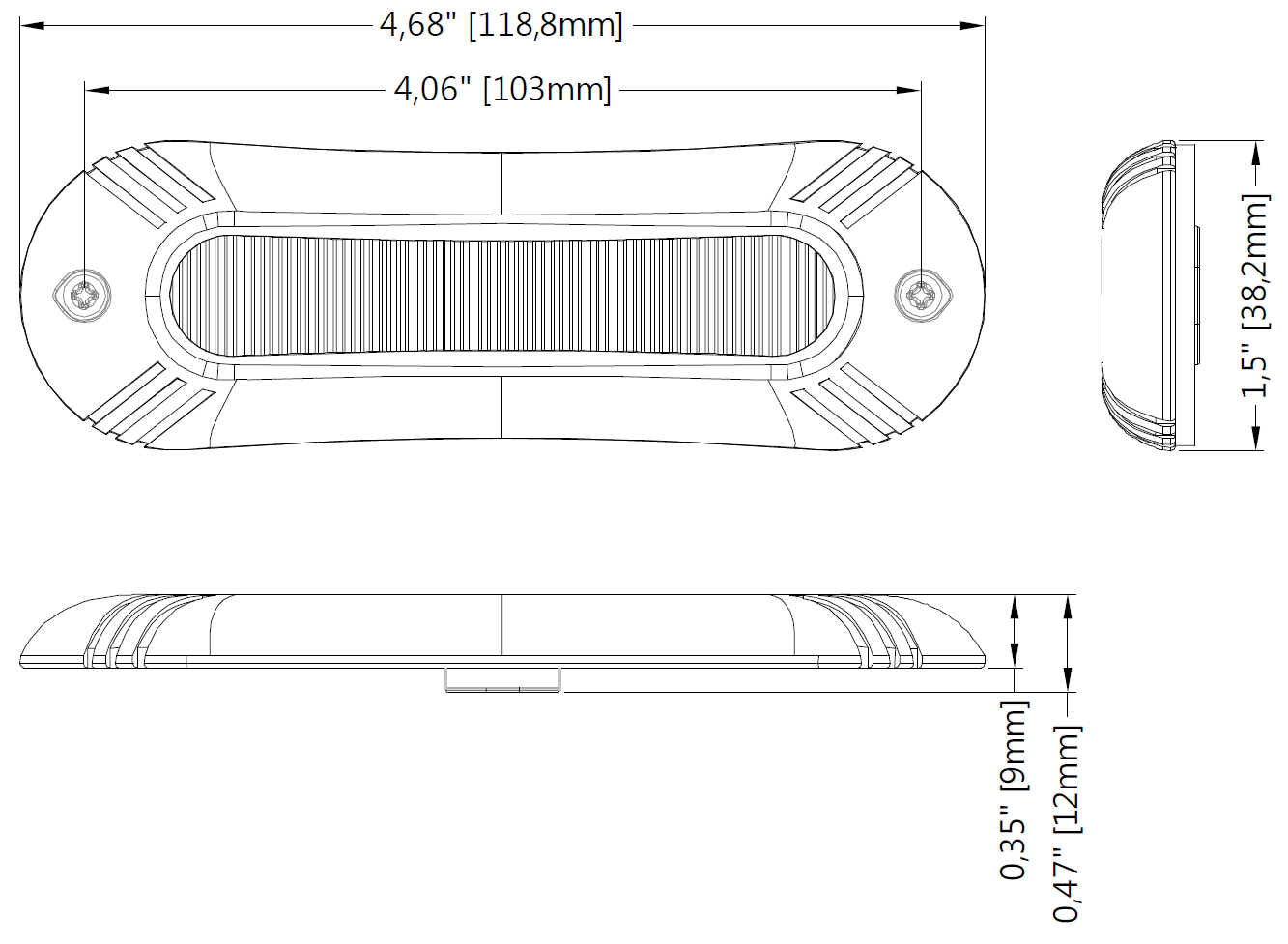

![](../upload/product/prod-2106220903.png)
