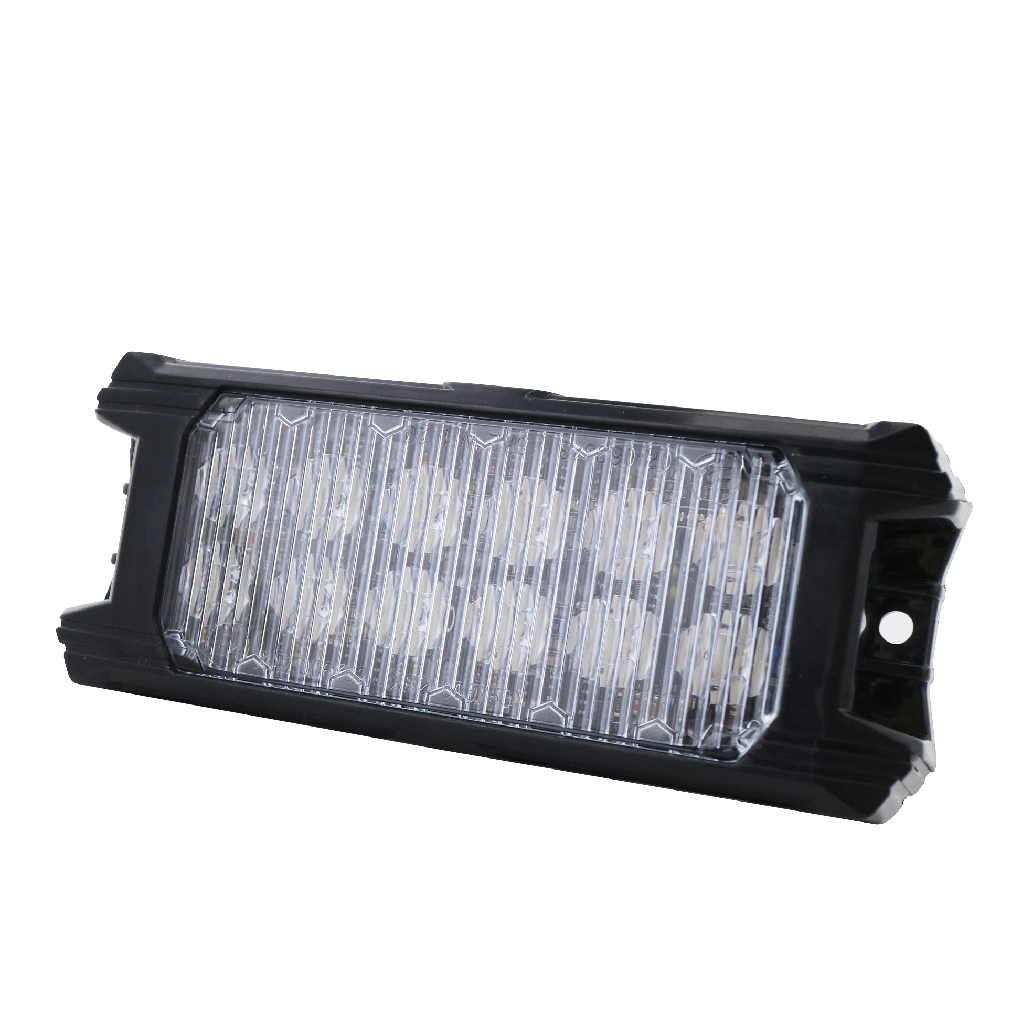

| Model |
HD12 (Heavy Duty 12 LED ) |
| Product Number |
LH09 |

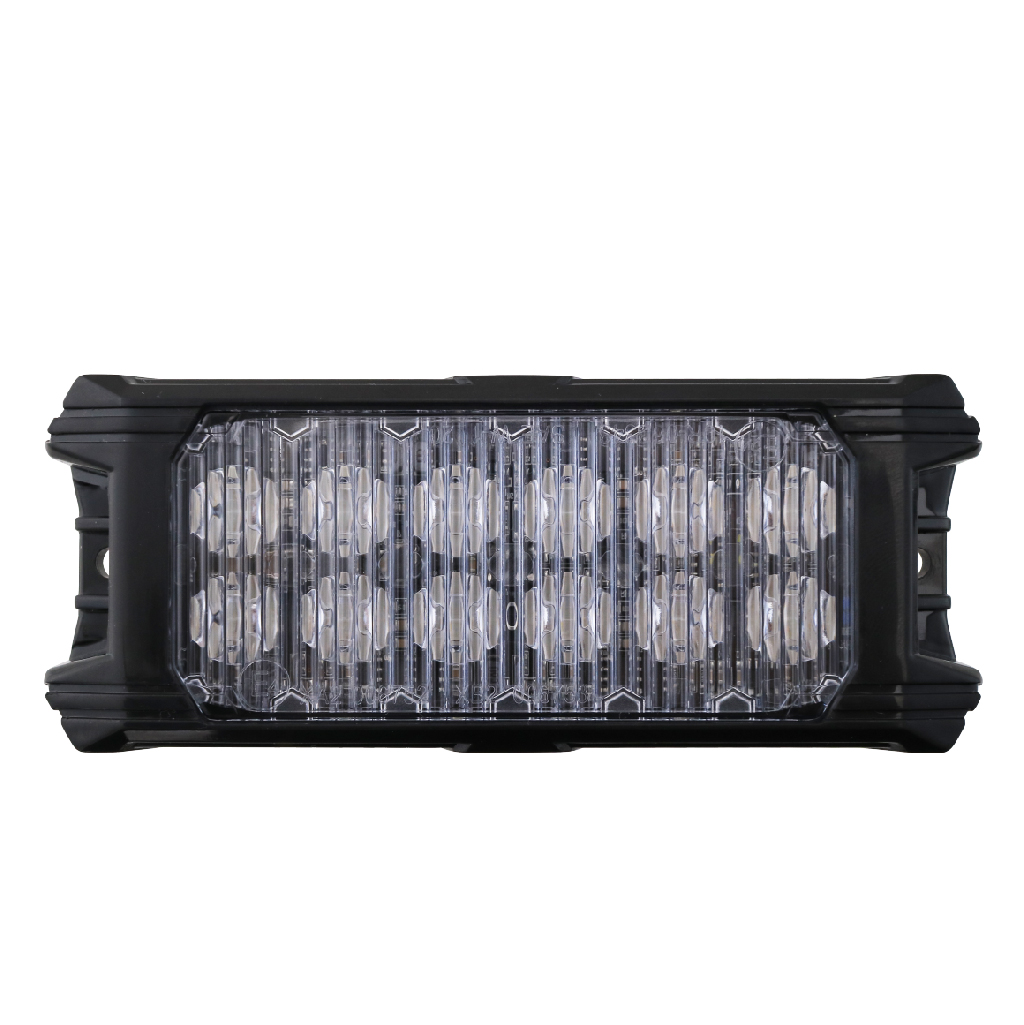

| LED |
High-power LED x 12pcs |
| Warning Patterns |
44 Flash Patterns |
| Operating Voltage |
12~24VDC |
| Avg. Current |
0.88A @12.8VDC / 0.47A @24VDC (varies with flash pattern) |
| Avg. Power |
11.2 Watts (varies with flash pattern) |
| Max. Current |
1.8A @12.8VDC / 0.93A @24VDC |
| Max. Power |
22.3 Watts |
| Wire-Red |
+Vcc, 20cm (22AWG) |
| Wire-Black |
-GND, 20cm (22AWG) |
| Wire-Yellow |
+Vcc for “ID & Flash pattern” selection, “Starter” set up or unlock, 20cm (22AWG) |
| Wire-Blue |
Connect all blue wires together among warning lights , 20cm (22AWG) |
| Wire-White |
+Vcc, Low Power , 20cm (22AWG) |
| Fuse Recommended |
3A |
| Multi-Unit Synchronization |
Up to 44 units |

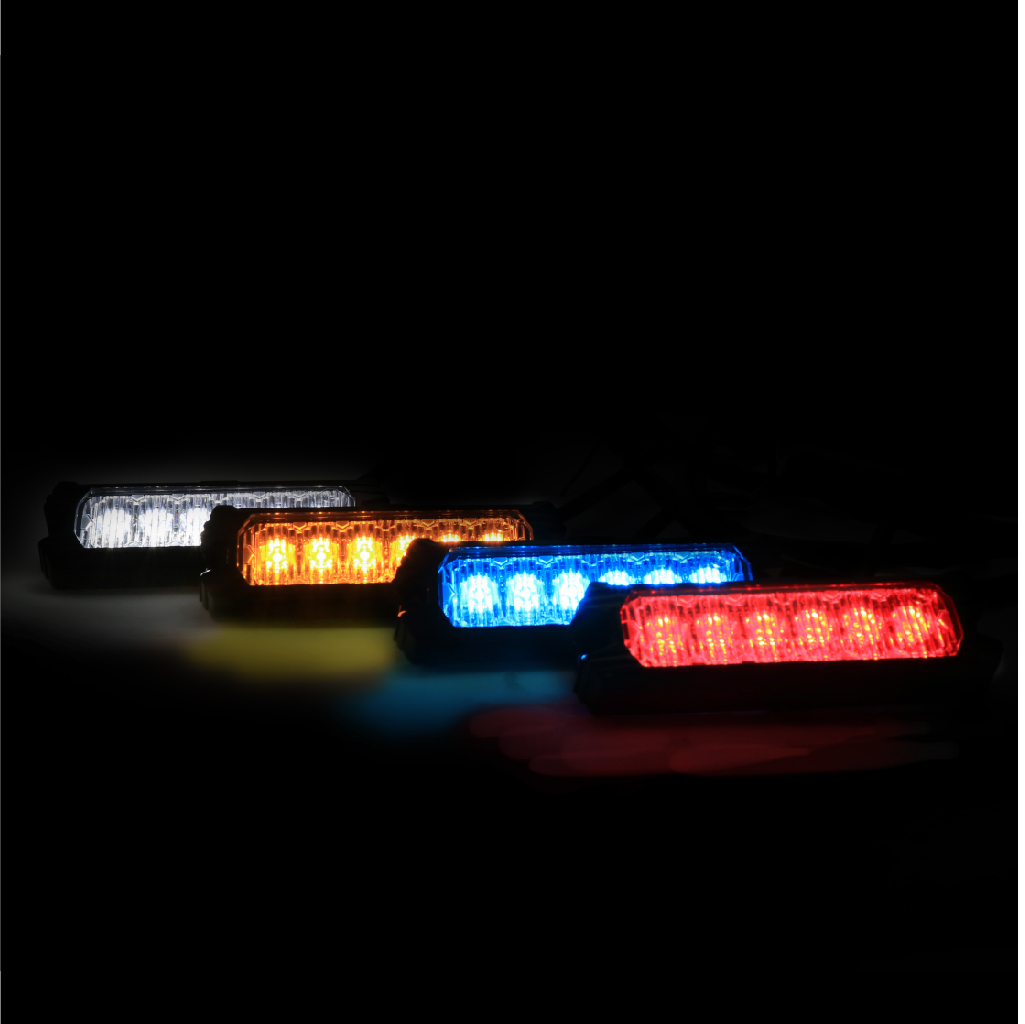

| Available Color |
RED, BLUE, AMBER, WHITE and Split Color |
| IP Level |
IP67 |
| Approval |
SAE J595 Class 1,CAL T13, ECE R65 XA2/XB2, ECE R10 |
