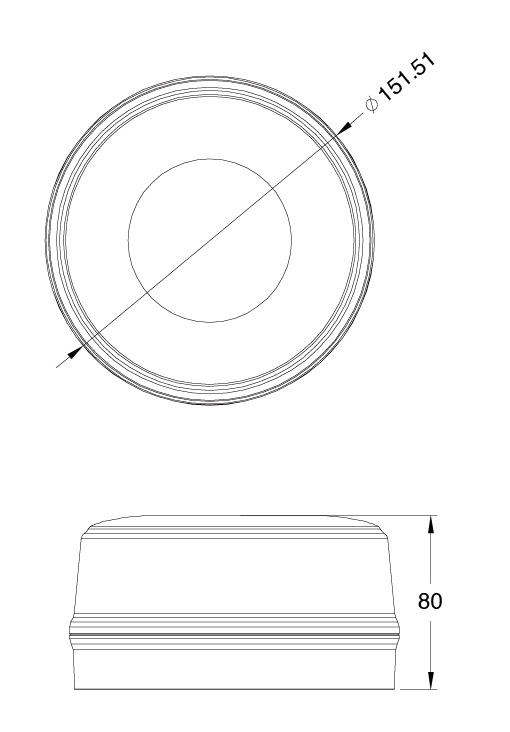

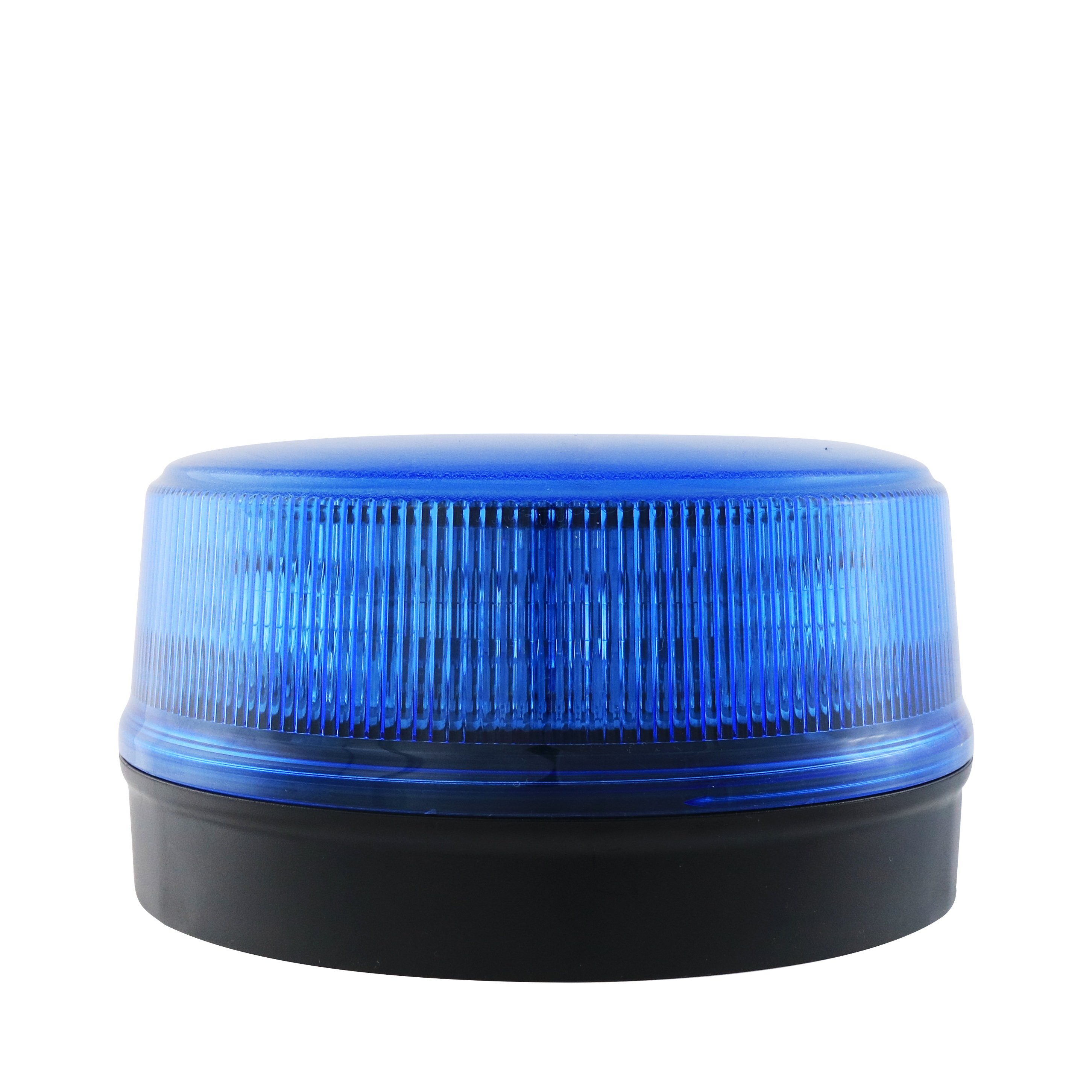

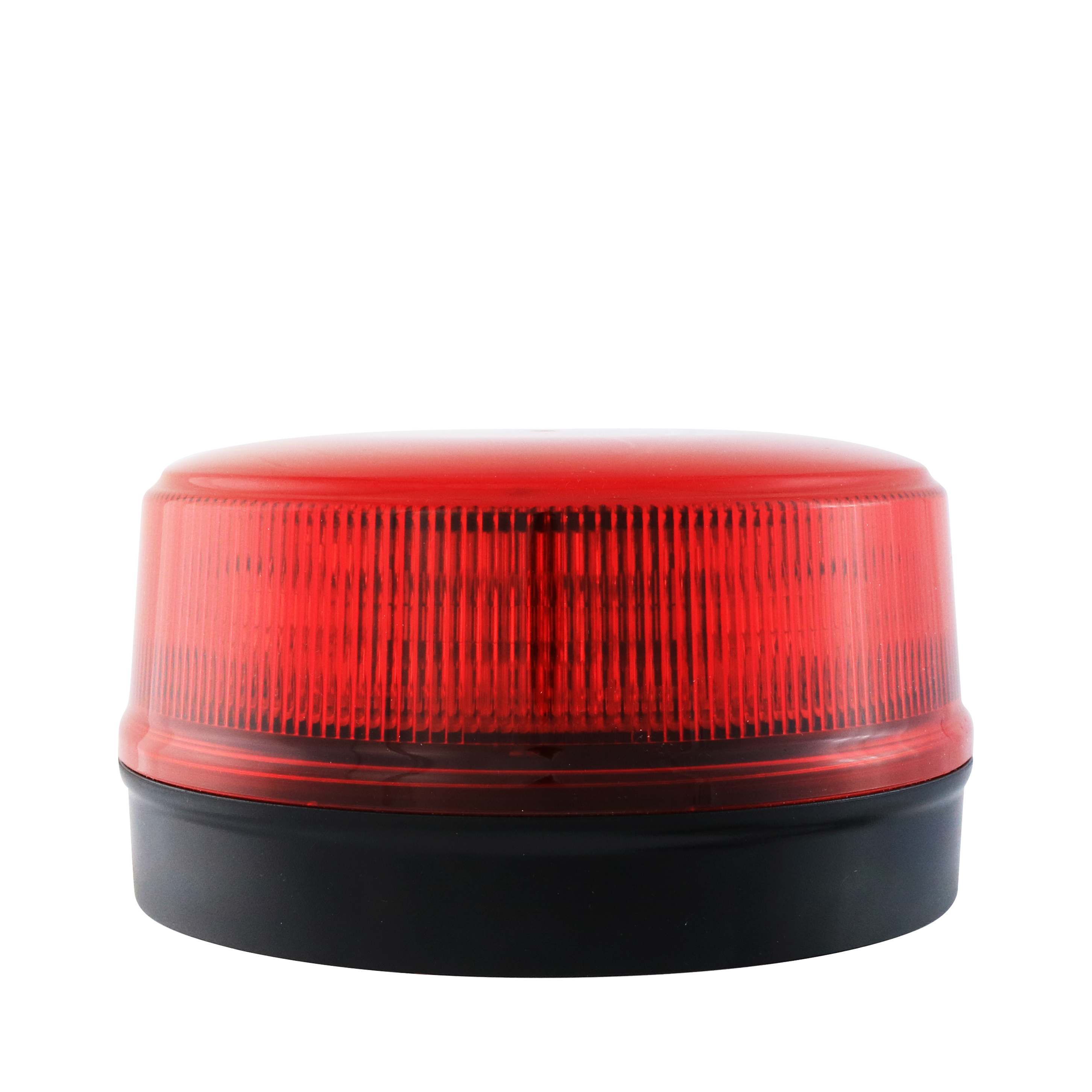

Ø151 80mm 8 LED Beacon
BE01
- Multi-Voltage Input 12~24VDC.
- Synchronization with multiple units of all series for flash simultaneously or alternately operation.
- Reverse polarity protection.
- Weatherproof and vibration resistant design for external or internal use.
- Lower power consumption saves up to 30%.
- Easy set up without complicated process.
- Quick set up and installation-save up 50% labor cost.
- Flexible for Permanent Mount, DIN Mount & Magnetic Mount.
- Meets SAE J845 Class 1, ECE R65 TA1/TB1, ECE R10, CA13.
| Model | BE01 - 80mm LED Beacon |
|---|---|
| Product Number | BE01 |
| LED | LED x 8 pcs |
| Warning Patterns | 16 Flash Patterns |
| Operating Voltage | 12~24VDC |
| Avg. Current | 0.99A @12.8VDC / 0.53A @24VDC |
| Avg. Power | 12.67 Watts (varies with flash pattern) |
| Max. Current | 1.97A @12.8VDC / 1.05A @24VDC |
| Max. Power | 25.22 Watts |
| Wire-Red | +VDC (fuse @10A) |
| Wire-Black | -GND |
| Wire-Yellow | +Vcc for “ID & Flash pattern” selection, “Starter” set up or unlock |
| Wire-Blue | Connect all blue wires together among warning lights |
| Wire-White | +VDC Low Power Control |

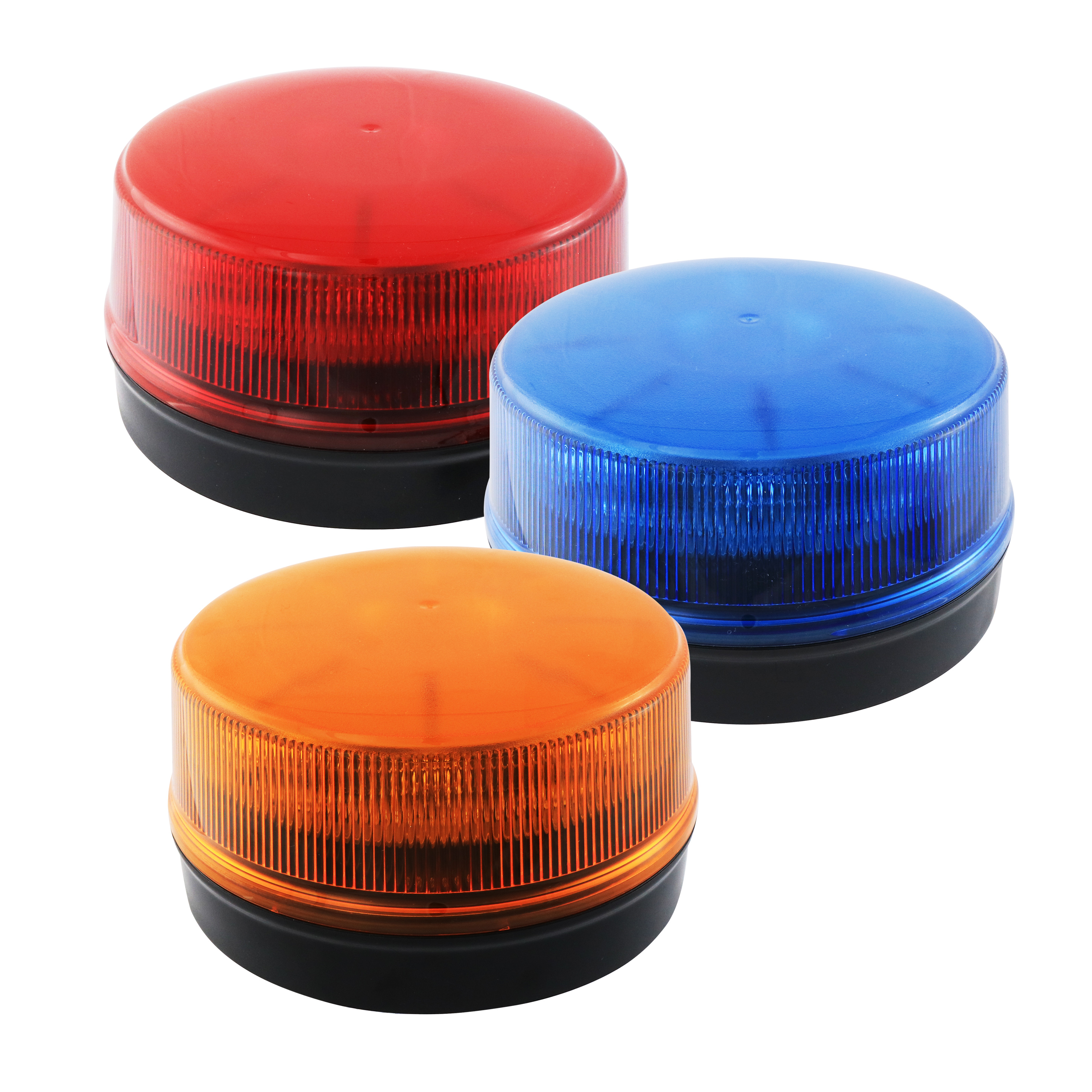

| Available Color | RED, BLUE, AMBER, White |
| IP Level | |
| Approval | ECE R65(TA1,TB1); ECE R10 ;SAE J845 ;CA13 |
- Multi-Voltage Input 12~24VDC.
- Synchronization with multiple units of all series for flash simultaneously or alternately operation.
- Reverse polarity protection.
- Weatherproof and vibration resistant design for external or internal use.
- Lower power consumption saves up to 30%.
- Easy set up without complicated process.
- Quick setup and installation- save up 50% labor cost.
- Flexible for Permanent Mount, Din Mount & Magnetic Mount.
- Meets SAE J845 Class 1, ECE R65 TA1/TB1, ECE R10, CA13.
- Warning lamp replacement
- 4x4 vehicle, Jeeps, Off-road applications
- Emergency Service Vehicle: Fire trucks, ambulance, Police cars
- Trucks or Buses
- Motorcycles
- Any special warning purpose application
