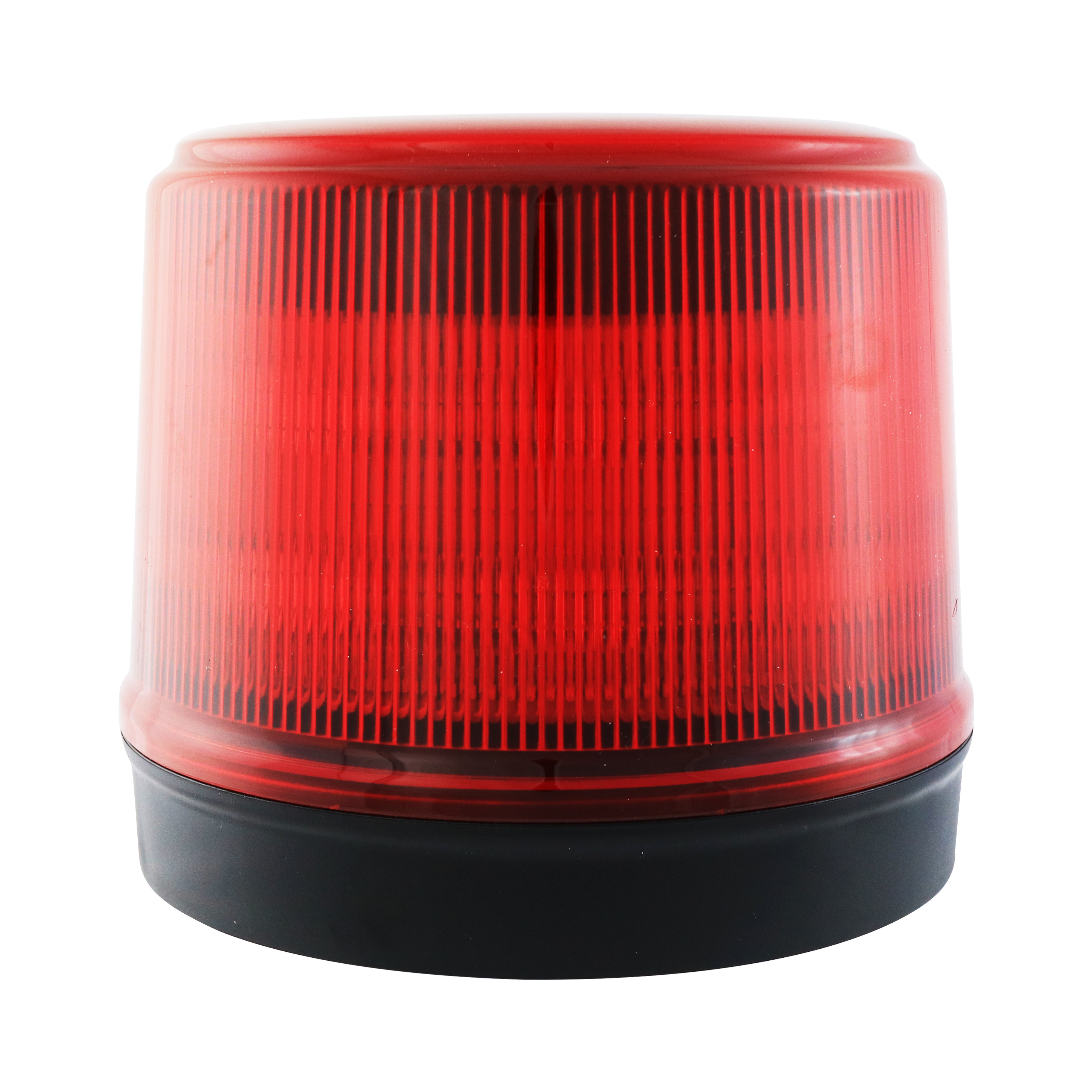

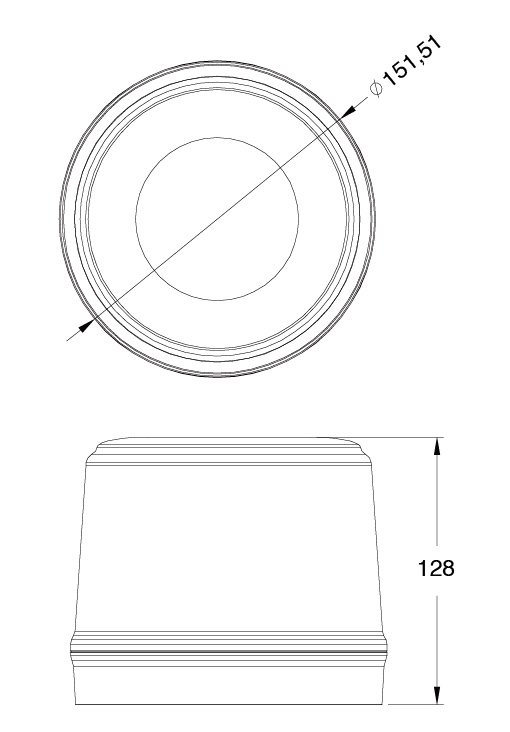

Ø151 130mm 16 LED Beacon
BE02
- Multi-Voltage Input 12~24VDC.
- Multiple units are synchronizable for flash simultaneously or alternately.
- Reverse polarity protection.
- Weatherproof and vibration resistant design for external or internal use.
- Flexible for Permanent Mount, DIN Mount & Magnetic Mount.
- Lower power consumption saves up to 30%.
- Easy set up without complicated process.
- Quick set up and installation-save up 50% labor cost.
- Meets SAE J845 Class 1, ECE R65 TA2/TB2, ECE R10, CA13.
Model | BE02 - 130mm LED Beacon |
---|---|
Product Number | BE02 |
LED | LED x 16 pcs |
Warning Patterns | 16 Flash Patterns |
Operating Voltage | 12~24VDC |
Avg. Current | 1.83A@12.8VDC / 0.98A@24VDC |
Avg. Power | 23.42 Watts (varies with flash pattern) |
Max. Current | 3.65A@12.8VDC / 1.95A@24VDC |
Max. Power | 46.72 Watts |
Wire-Red | +VDC (fuse @10A) |
Wire-Black | -GND |
Wire-Yellow | +Vcc for “ID & Flash pattern” selection, “Starter” set up or unlock |
Wire-Blue | connect all blue wires together among warning lights |
Wire-White | +VDC Low Power Control |

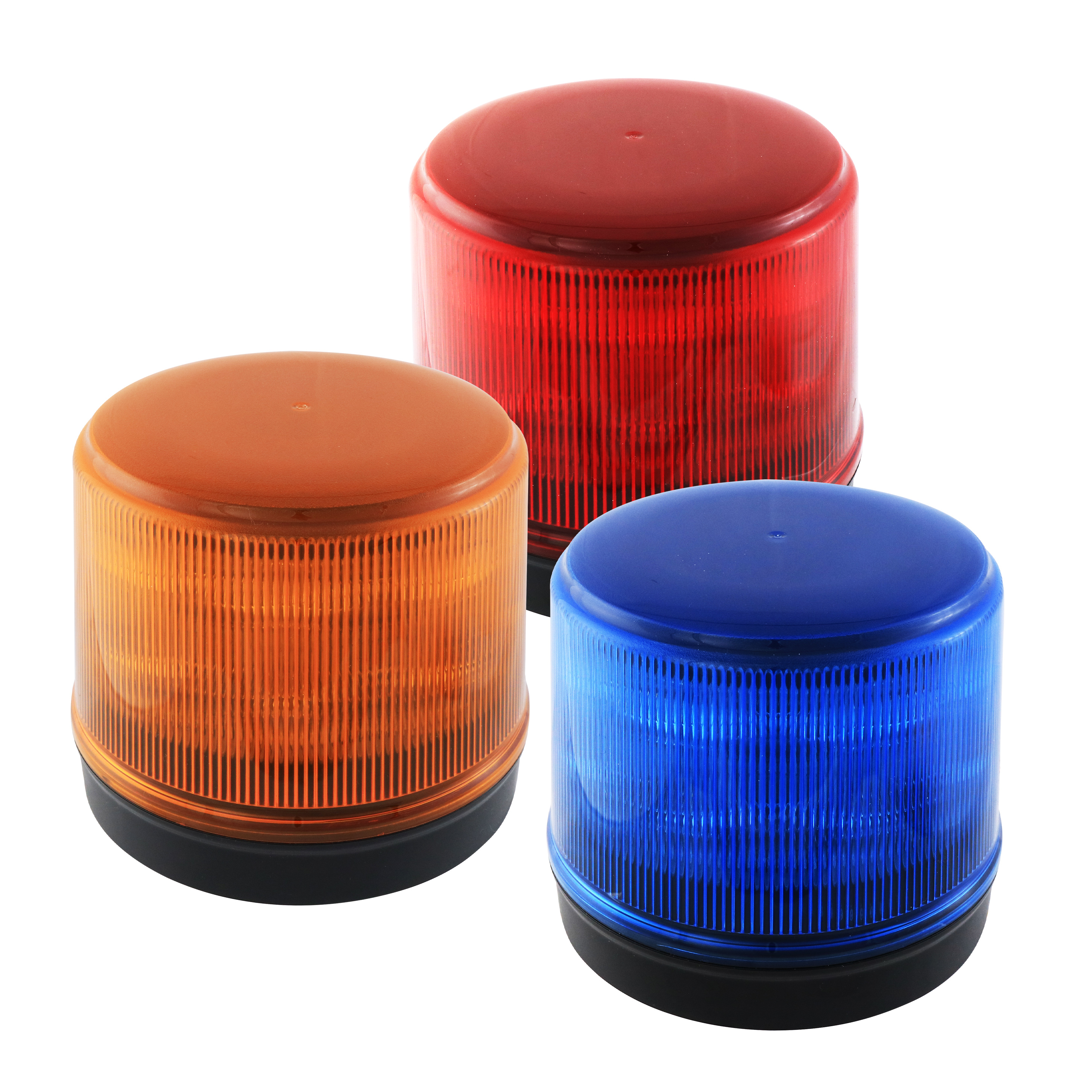

Available Color | RED, BLUE, AMBER, White |
IP Level | |
Approval | ECE R65(TA2,TB2); ECE R10 ;SAE J845 ;CA13 |
- Multi-Voltage Input 12~24VDC.
- Synchronization with multiple units of all series for flash simultaneously or alternately operation.
- Reverse polarity protection.
- Weatherproof and vibration resistant design for external or internal use.
- Flexible for Permanent Mount, DIN Mount & Magnetic Mount.
- Lower power consumption saves up to 30%.
- Easy set up without complicated process.
- Quick set up and installation-save up 50% labor cost.
- Meets SAE J845 Class 1, ECE R65 TA2/TB2, ECE R10, CA13.
- Warning lamp replacement
- 4x4 vehicle, Jeeps, Off-road applications
- Emergency Service Vehicle: Fire trucks, ambulance, Police cars
- Trucks or Buses
- Motorcycles
- Any special warning purpose application
